ARGB RGB Controller DeepCool SC700

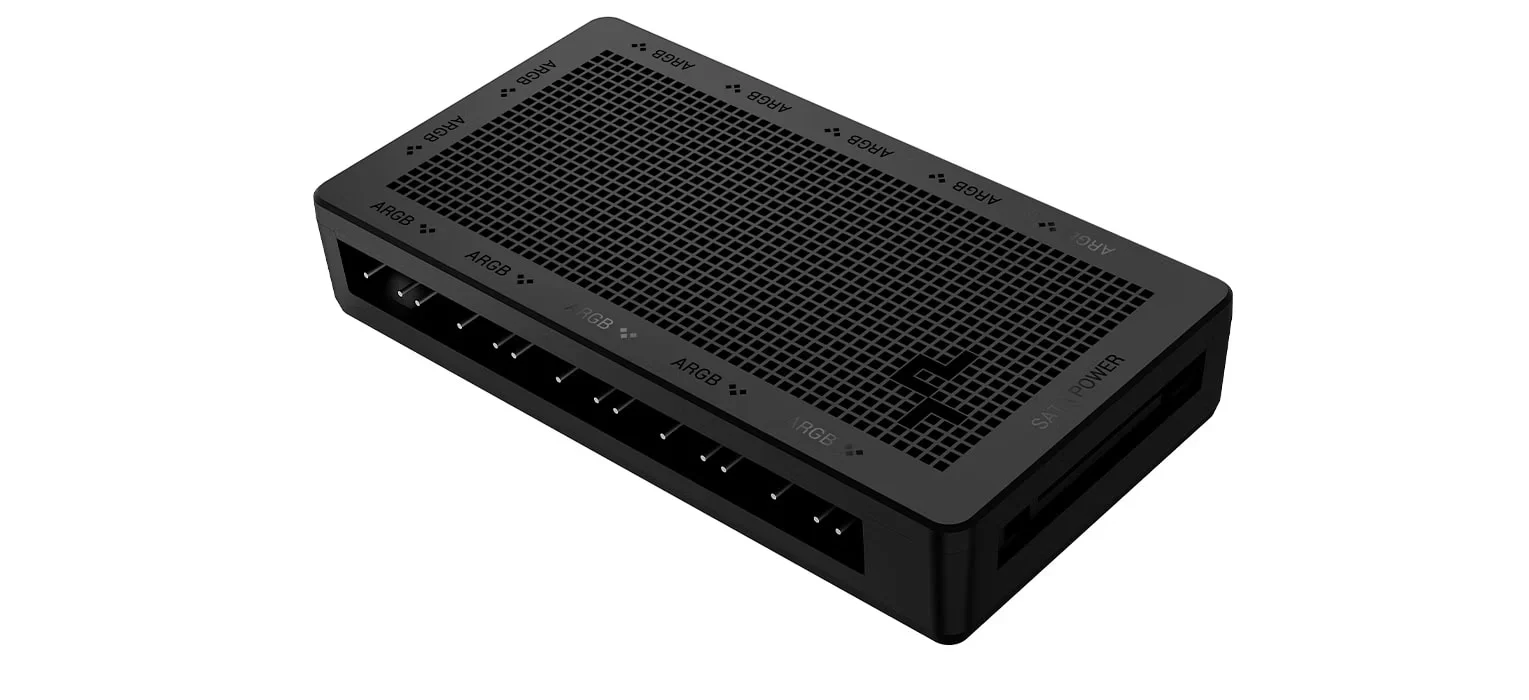

The DeepCool SC700 is a hub that connects one 3-pin 5 V addressable RGB (ARGB) header, on a motherboard or controller, to up to 12 ARGB devices such as fans and LED strips. It takes its power from a SATA connector and mounts magnetically.

Specifications

• Ports: 12 × 3-pin ARGB (5 V)
• Connects to: One 3-pin 5 V ARGB header (motherboard or controller)
• Power: SATA power connector
• Rated voltage: 5 V DC
• Current limit: 0.5 A per port, 6 A in total
• Software support: ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, ASRock Polychrome
• Mounting: Magnetic
• Dimensions: 84 × 45 × 15 mm
• Weight: 38 g
• Colour: Black

Good to know

• Works with 5 V 3-pin ARGB devices only. It is not compatible with 12 V 4-pin RGB devices.
• It needs a free 3-pin 5 V ARGB header on the motherboard (or on a controller) and a SATA power connector.
