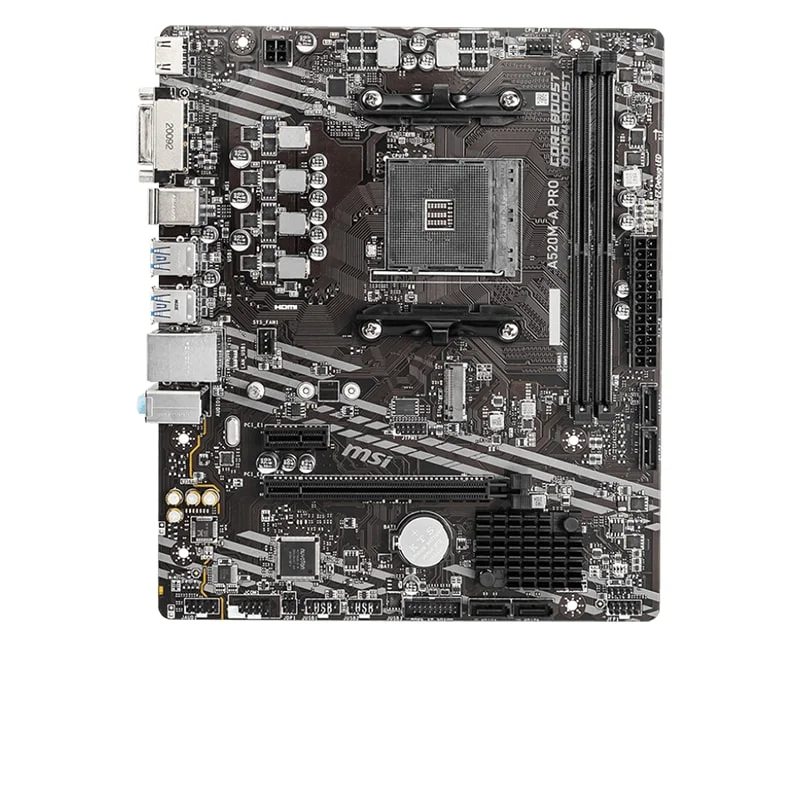

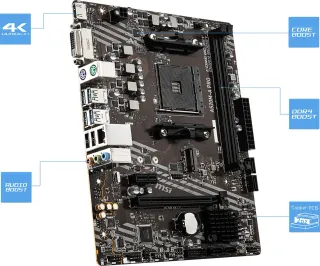

Motherboard MSI A520M-A Pro

MSI Micro-ATX motherboard with the AMD A520 chipset for Ryzen processors on socket AM4. A simple base for an office or home PC, with HDMI and DVI-D outputs for Ryzen processors that have integrated graphics.

Specifications

• Chipset / socket: AMD A520 / AM4
• Processors: Ryzen 5000, 5000 G, 4000 G, 3000 and 3000 G series
• Memory: 2 × DDR4 DIMM, up to 64 GB, dual channel, DDR4-3200, up to 4600+ MHz (OC)
• Storage: 1 × M.2 PCIe 3.0 x4 / SATA (2242 to 2280), 4 × SATA 6 Gb/s
• Expansion slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
• Network: Realtek RTL8111H Gigabit LAN
• Video outputs: HDMI 2.1 (4096 × 2160 at 60 Hz), DVI-D (1920 × 1200 at 60 Hz)
• Rear USB: 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0, plus a PS/2 port
• Audio: Realtek ALC892/ALC897, 7.1 channels
• Form factor: Micro-ATX, 23.6 × 20 cm

Good to know

• The A520 chipset does not allow processor overclocking; memory profiles (A-XMP) are supported.
• The video outputs need a processor with integrated graphics.
