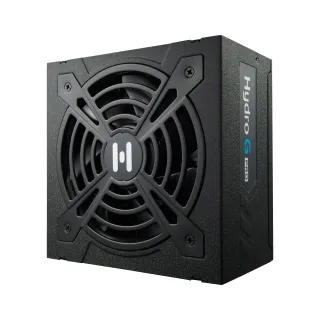

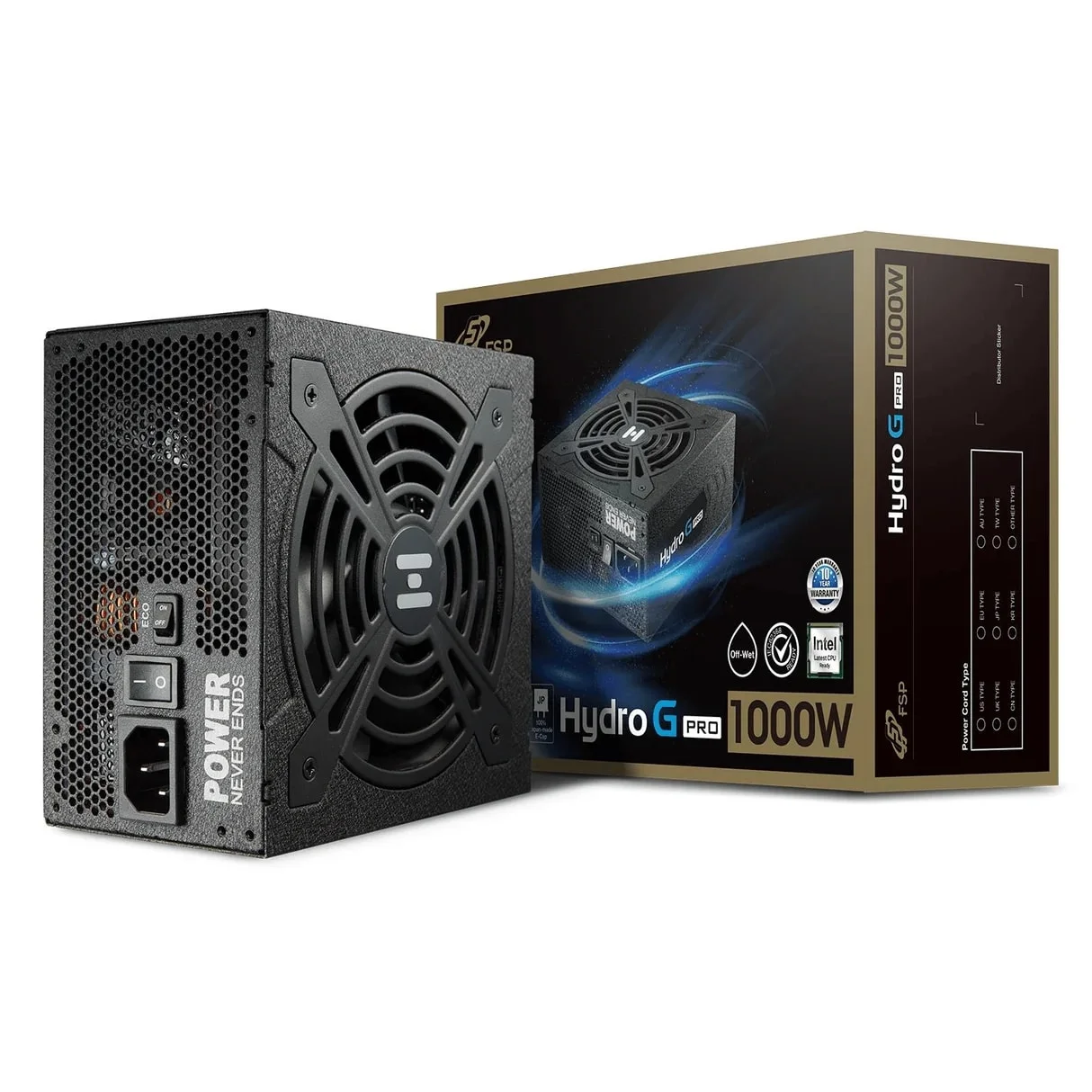

Power Supply FSP Hydro G Pro 1000W Gold

1000 W fully modular power supply from FSP's Hydro G PRO range, for high-end gaming PCs and workstations, in a compact 150 mm body.

Specifications

• Power: 1000 W
• Efficiency: 80 PLUS Gold
• Cables: fully modular
• Fan: 120 mm, fluid dynamic bearing (FDB)
• Connectors: 1 × 24-pin, 2 × CPU 4+4-pin, 14 × SATA, 5 × Molex, 1 × floppy
• Graphics card: 8 × PCIe 6+2 (original version) or 6 × PCIe 6+2 plus one 16-pin (ATX 3.0 and ATX 3.1 versions)
• Protections: OCP, OVP, OPP, SCP, OTP
• Input: 100–240 V AC, active PFC
• Dimensions: 150 × 150 × 86 mm

Good to know

• FSP has made this model in three versions: the original, ATX 3.0 with a 12VHPWR 16-pin connector, and ATX 3.1 with a 12V-2x6 16-pin connector. The label on the unit shows which one it is.
