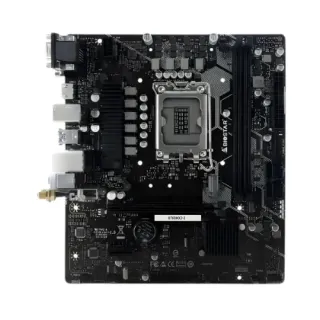

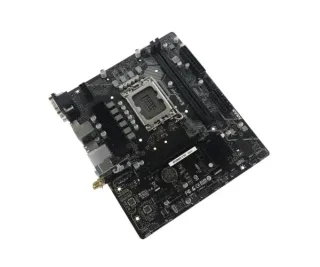

Motherboard Biostar B760MX2-E

Biostar Micro-ATX motherboard with the Intel B760 chipset for 12th, 13th and 14th Gen Intel processors on socket LGA1700. It takes DDR5 memory and has 2.5 Gb Ethernet and three video outputs, for a compact office or gaming PC.

Specifications

• Chipset / socket: Intel B760 / LGA1700
• Processors: 12th, 13th and 14th Gen Intel Core, Pentium and Celeron
• Memory: 2 × DDR5 DIMM, up to 128 GB, dual channel, up to 6000+ MT/s (OC)
• Storage: 1 × M.2 PCIe 4.0 x4 / SATA (2242 to 2280), 4 × SATA 6 Gb/s
• Expansion slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
• Network: Realtek RTL8125B 2.5 Gb Ethernet
• Video outputs: HDMI (up to 4096 × 2160 at 24 Hz), DVI-D, VGA
• Rear USB: 2 × USB 3.2 Gen 1, 4 × USB 2.0, plus a PS/2 port
• Audio: Realtek ALC897, 7.1 channels
• Form factor: Micro-ATX, 20.8 × 23.6 cm

Good to know

• DDR5 only: the DDR4 version is a different model (B760MX2-E D4).
• No Wi-Fi card included: an optional M.2 (E key) Wi-Fi and Bluetooth module can be added, with an antenna port at the rear.
• The video outputs need a processor with integrated graphics (Intel F models have none).
